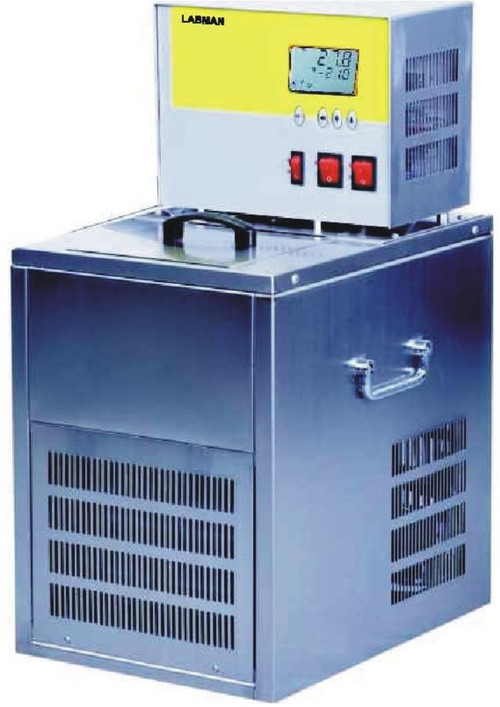

REFRIGERATED CIRCULATING BATH
Discription
Refrigerated Circulating Bath is widely used in biotechnology, pharmaceutical, food, chemical, metallurgy, chemical analysis, oil and other fields......
Refrigerated Circulating Bath is widely used in biotechnology, pharmaceutical, food, chemical, metallurgy, chemical analysis, oil and other fields.
- LCD, Microprocessor, High precision, PID temperature control system.
- Overheat protection and liquid level alarm function.
- Water level alarm function.
- Fast cooling, low noise, low vibration, stable and reliable performance.
- Pt100 temperature sensor.
- Both sides folding handle for easy movement.
- Pump flow rate 8L/min. & 10L/min.
- Programmable temperature controller with RS232 ( Optional )
- Stainless steel inner & outer tank
It can be attached for temperature maintenance in
- Fermentation Tank
- Polarimeter,
- Electrophoresis System,
- Spectrophotometer,
- Refractometer,
- Chromatographic Column,
- Rotary Evaporator
- Viscometer
| MODEL | ||
| Make | LABMAN | |
| Temperature range() | - 200 to 95 °C | |
| Temperature display resolution | 0.1 °C | |
| Temperature Control | Microprocessor PID | |
| Display | LCD | |
| Refrigeration | Air Cooled refrigeration through compressor | |
| Refrigerant | R-134a | |
| Pump circulation | Internal and external | |
| Temperature sensor | Pt100 | |
| Bath Tank capacity | 6 L | 15 L |
| Tank size ( Lx W x D ) | 300x 150x 150 mm | 350 x 220 x 200 mm |
| Bath opening ( Lx W ) | 150x 150 mm | 215x 180 mm |
| Bath depth | 150 mm | 200 mm |
| Pump flow rate | 8 L/min | 10 L/min |
| Working voltage | 220V±10% 50HZ±1 | |
| Power(W) | 1100W | 1700W |
| Dimension | 340 x 405 x 670 mm | 370 x 450 x 750 mm |
| Weight | 37 kg | 45 kg |
