CodeBS0029

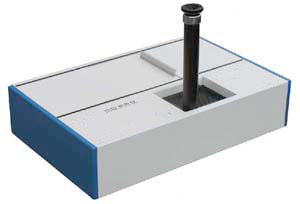

TINTOMETER

Discription

Tintometer is a kind of visual colour measuring instrument. It measures colour scale unit which is an international acknowledged specific colour method, as a standard to measure the colority of liquid, gelatin, solid and powder samples. This instrument has the features of simple structure a.....

Request A Quote

Tintometer is a kind of visual colour measuring instrument. It measures colour scale unit which is an international acknowledged specific colour method, as a standard to measure the colority of liquid, gelatin, solid and powder samples. This instrument has the features of simple structure and convenient operation and often used in the colour measurements of different materials of grease, paint, plastics, jam, textile fabric, foodstuff, liquid chemicals and pharmaceuticals.

  • Measuring principle visual, in terms of international colour scale units
  • Visual measurement of colour matching to determine material colour.
  • Design in conformity with internationally accepted colour scale unit.
  • Simple structure and easy to operate.
  • Replaceable sample chamber liner
  • Replaceable light source, two spares Incandescent lamps.
  • Viewing system Fully adjustable.
MODEL
Make BASCO
Measuring principle Visual, in terms of international colour scale units
Modes Transmittance, reflectance
Measurement range 0.1 - 79.9 Red
  0.1 - 79.9 Yellow
  0.1 - 49.9 Blue
  0.1 - 3.9 Neutral
Resolution 0.1 colour scale unit
Viewing system Fully adjustable
Light Source Incandescent lamp
Illuminant Approximates to daylight
Path Length Up to 180 mm
The diffuse reflectactivity of White plate > 80%
The amplification of the magnifiers 1.9 X
The dimension of Colorimetric untensil 10 x 20 x 40mm, 25.4x20x4Omm, 133.4 x 20 x 40mm
Power supply & Power Watts AC 220 V/ 50 Hz & 50W
Dimension & Weight 620 x 440 x 300 mm & 12.5 kg
