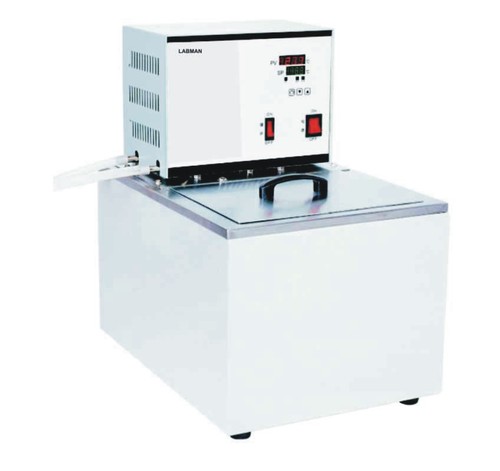

THERMOSTATIC CIRCULATING BATH
Discription
Thermostatic Circulating baths are widely used in biological engineering, medicines, foods, chemical engineering, metallurgy, chemical analysis and petroleum etc......
Thermostatic Circulating baths are widely used in biological engineering, medicines, foods, chemical engineering, metallurgy, chemical analysis and petroleum etc.
- Latest design precision microprocessor temperature control system
- Pt100 temperature sensor
- Overheat protection and over-temperature alarm
- Temperature display resolution 0.1 t
- Pump flow 8L/min
- Separate display for the set & measured value of temp.
- Stainless Steel Inner tank
- Lower & Upper limit alarm indicator
- Self-tuning indicator
MODEL |
||
| Make | BASCO | |
| Temperature range | Ambient +5° - 95 t |
Ambient +200 - 200 t |
| Pump circulation | Internal and external |
Internal |
| Inner tank size (mm) | 350 x 220 x 200 mm | |
| Display resolution | 0.1t | |
| Bath Tank capacity | 15L | |
| Bath Opening ( L x W ) | 215x180 mm | |
| Bath depth | 200 mm | |
| Display | LED | |
| Pump flow rate | 8 L/min | |
| Control mode | Microprocessor PID | |
| Temperature sensor | Pt100 | |
| Working voltage | 220V±10% 50Hz±1 | |
| Power (W) | 1500W | |
| Dimension | 320x430x480 mm | |
| Weight | 16 kg | |
