CodeBS0034

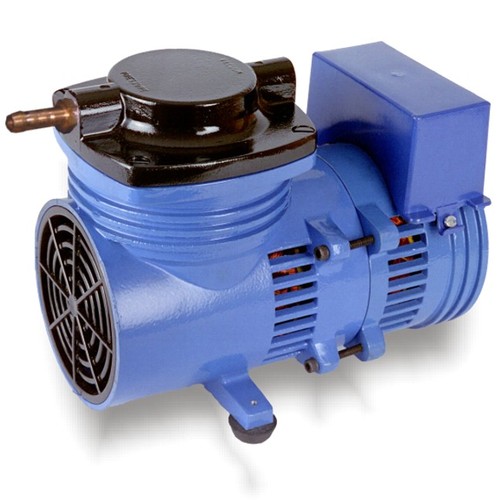

VACUUM PUMPS PORTABLE, OIL FREE (DIAPHRAGM TYPE)

Discription

A portable diaphragm type vacuum pump oil free maunfactured from special grade aluminium for light weight and strength. Built-in Micro Suction Filter. p>Diaphragms are made of 2-play nylon reinforced neophrene rubber and valves are of SS 316 with special sealed bearing thus eliminating lubric.....

Request A Quote

A portable diaphragm type vacuum pump oil free maunfactured from special grade aluminium for light weight and strength. Built-in Micro Suction Filter. p>Diaphragms are made of 2-play nylon reinforced neophrene rubber and valves are of SS 316 with special sealed bearing thus eliminating lubrication.

Extremely useful as Vacuum Pump in Laboratories, filteration instruments, gas charging suction and labeling machines, etc. equally useful as compressor in flame.photometers,Spectrophotometers, Nebuliser.

It works on 220 Volts ±10%, 50 Hz A.C. The available models are as under:

Max.Vacuum (Its./Min.) Max.Press(in Hg) Motor (Psig) HP(Psig)
15 22” 35 1/16
25 22” 25 1/16
45 27” 60 1/4
