CodeBS0044

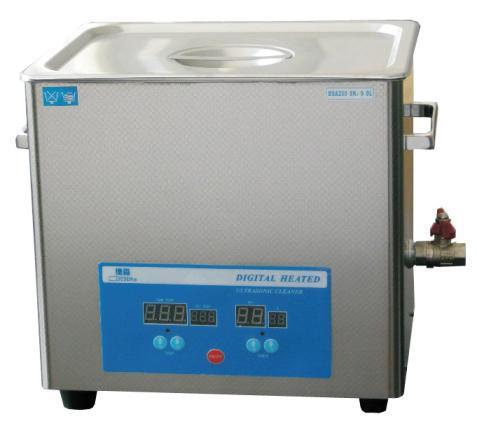

DIGITAL ULTRASONIC CLEANER WITH LID TIMER & HEATER

Discription

The Ultrasonic energy is produced by converting electrical energy in to Mechanical Vibrations by using generator and piezo Electric Transducers. Due to Mechanical Vibrations in cleaning liquid this Phenomenon is called cavitation. In a very short time it removes all dirt & foreign bodies from .....

Request A Quote

The Ultrasonic energy is produced by converting electrical energy in to Mechanical Vibrations by using generator and piezo Electric Transducers. Due to Mechanical Vibrations in cleaning liquid this Phenomenon is called cavitation. In a very short time it removes all dirt & foreign bodies from components which are immersed in the cleaning liquid.

  • Continuous Self Tuning Circuitry For Any change In Workload, Liquid Level And Bath Temp
  • Uniform Cavitations Through Out The Tank
  • Separate Oscillator Eliminates Damage To Generator In Case of Failure Of Transducers
  • Using 40 Khz Frequency For Effective Cleaning With Low Noise
  • Designed For Complete Cleaning Of Small and Large Components Without Dismantling
  • Inner tank and Outer body made of Stainless Steel

EFFECTIVE REMOVES

  • Dust
  • Dirt
  • Rust
  • Greece
  • Wax
  • Flux
  • Finger Prints.Etc..
  • Electroplating
  • Ophthalmology
  • Electronics
  • Pharmaceutical
  • Machine Tools
  • Surgical
  • Automobile
  • Jewellary
  • Watch Industry
Model
Make BASCO
Tank Volume (litres) 1.8L 2.5L 4 L 6 L 9 L
Ultrasonic Wattage 50 W 100 W 150 W 200 W
Ultrasonic Frequency 40 ± 3 KHz
Tank Dimension (Taper) LxWxH (mm) 150x137x100 150x137x150 235x135x150 300x153x150 300x240x150
Outer Dimension LxWxH (mm) 175x165x200 175x165x 250 265x165x290 325x175x290 325x265x290
Heating Ambient to 80°C Digitally Controlled ( Dual Display )
Digital  Timer 5 to 60 Minutes
Tank Drain N/A Ball Valve
Inner Tank Material Stainless Steel
Outer Housing Material Stainless Steel
Power Supply 220 Volt, Ac 50 Hz, Single Phase
Model
Make BASCO
Tank Volume (litres) 12 L 12 L 16 L 25 L
Ultrasonic Wattage 200 W 300 W 300 W 600 W
Ultrasonic Frequency 40 ± 3 KHz
Tank Dimension(Taper)LxWxH (mm) 300x240x200 330x300x150 330x300x200 500x300x200
Outer Dimension LxWxH (mm) 325x265x340 354x325x340 354x325x400 530x330x420
Heating Ambient to 80°C Digitally Controlled ( Dual Display )
Digital  Timer 5 to 60 Minutes
Tank Drain Ball Valve
Inner Tank Material Stainless Steel
Outer Housing Material Stainless Steel
Power Supply 220 Volt, Ac 50 Hz, Single Phase
